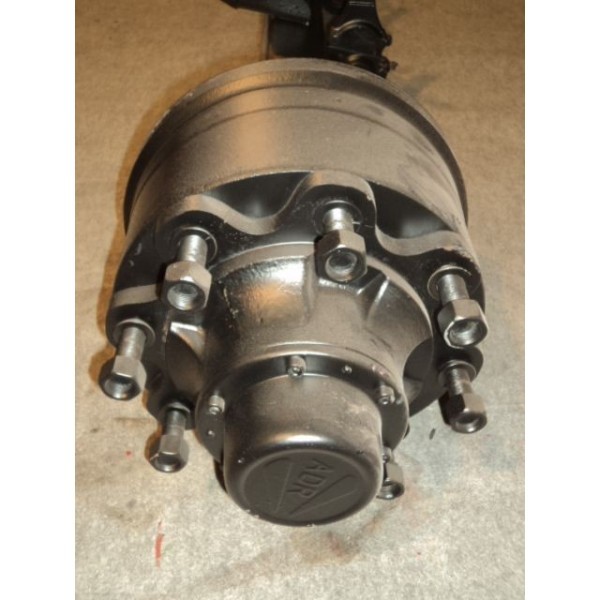

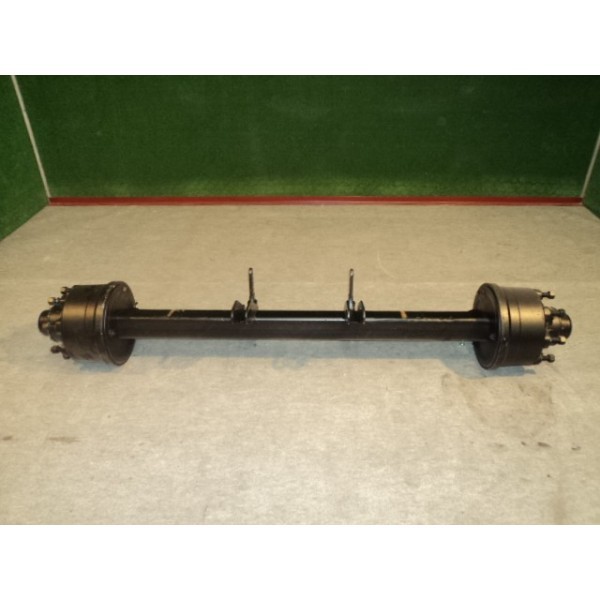

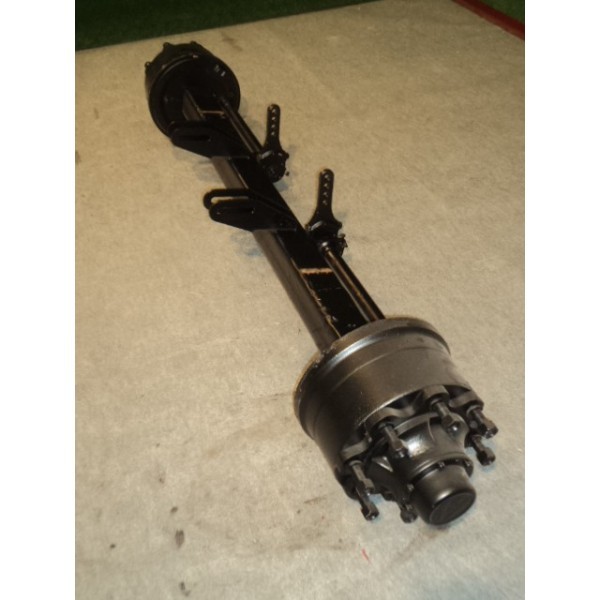

Ejes para uso Agricola con freno. Eje fijo de Velocidad Palanquilla maciza Freno de facil regulación des de el exterior Para cisternas, Remolques, Plataformas de 1 eje, Tandem, Galera i Semiremolque. Medidas según dibujo: | | Kilos que soporta de x km/h | Kilos que soporta de x km/h | Kilos que soporta de x km/h | Kilos que soporta de x km/h | | 25 km/h | 40 km/h | 60 km/h | C E | | Galera | Eje simple | Tandem | Galera | Eje simple | Tandem | Galera | Eje simple | Tandem | Galera | Eje simple | Tandem | | CODIGO | A | B | C | D | F | G | H | Nº Esparragos | __####
o o | __####
o | __####
oo | __####
o o | __####
o | __####
oo | __####
o o | __####
o | __####
oo | __####
o o | __####
o | __####
oo | | | | | | | | | | | | | | | | | | | | | | | | CSUSEIX0006 | 100 | 85 | 300 | 135 | 220 | 20 | 1900 | 8 | 13,500 | 14,500 | 12,000 | 13,000 | 14,000 | 11,500 | 12,000 | 13,000 | 11,000 | | | | | CSUSEIX0004 | 120 | 80 | 406 | 120 | 280 | 22 | 1900 | 10 | | | | 10,000 | 11,500 | 9,500 | 9,500 | 11,000 | 9,000 | 9,000 | 10,500 | 8,500 | | CSUSEIX0003 | 120 | 80 | 406 | 120 | 280 | 22 | 2000 | 10 | | | | 10,000 | 11,500 | 9,500 | 9,500 | 11,000 | 9,000 | 9,000 | 10,500 | 8,500 | | CSUSEIX0002 | 130 | 90 | 406 | 120 | 280 | 22 | 2000 | 10 | 13,000 | 14,000 | 11,500 | 13,000 | 14,000 | 11,500 | 12,000 | 13,000 | 11,000 | | | | | CSUSEIX0056 | 130 | 90 | 406 | 120 | 280 | 22 | 2100 | 10 | 13,000 | 14,000 | 11,500 | 13,000 | 14,000 | 11,500 | 12,000 | 13,000 | 11,000 | | | | | CSUSEIX0194 | 130 | 90 | 406 | 120 | 280 | 22 | 2200 | 10 | 13,000 | 14,000 | 11,500 | 12,000 | 13,000 | 11,000 | 11,000 | 12,000 | 10,000 | | | | | CSUSEIX0199 | 130 | 90 | 406 | 120 | 280 | 22 | 2300 | 10 | 13,000 | 14,000 | 11,500 | 12,000 | 13,000 | 11,000 | 11,000 | 12,000 | 10,000 | | | | | CSUSEIX0198 | 150 | 110 | 406 | 140 | 280 | 22 | 2000 | 10 | 18,000 | 19,000 | 16,500 | 18,000 | 19,000 | 16,500 | 16,500 | 17,500 | 15,000 | 15,000 | 16,000 | 13,500 | | CSUSEIX0164 | 150 | 110 | 406 | 140 | 280 | 22 | 2100 | 10 | 18,000 | 19,000 | 16,500 | 18,000 | 19,000 | 16,500 | 16,500 | 17,500 | 15,000 | 15,000 | 16,000 | 13,500 | | CSUSEIX0192 | 150 | 110 | 406 | 140 | 280 | 22 | 2200 | 20 | 18,000 | 19,000 | 16,500 | 18,000 | 19,000 | 16,500 | 16,500 | 17,500 | 15,000 | 15,000 | 16,000 | 13,500 |
| A | = | Palanquilla Maciza | | B | = | Ø Rodamiento | | C | = | Ø Interior Tambor | | D | = | Amelo Zapata | | F | = | A Toque o Ø del asiento llanta | | G | = | Ø Diametro esparragos | | H | = | Anchura del piso o donde apoya la llanta |
|
